# DSBA 20598 – FinTech and Blockchains
## Lecture 3: Payment Technology // Foundations of Blockchain
### Prof. Silvio Petriconi
### Department of Finance, Bocconi University
### 2019-09-19 (updated: 2019-09-29)

---

class: inverse, left
background-image:url("img/cash-register-78741_1920.jpg")
background-position: left
background-size: cover

#Payment Technology Evolving

###  | Origins
###  | Infrastructure
###  | Retail instruments
###  | Blockchain: foundations

---

# Payment Technology

Until very recently, payment technology has been playing a
stepkind-like role in the world of finance. It was considered
the bureaucratic part of financial business, comprising of the purely mechanical settling of payments, with little upside potential.
Relatively few finance professionals were interested in it.

This has changed dramatically.

First, digital payment technology is having
unmatched success in emerging markets because it allows
buyers and mechants to ameliorate severe frictions and risks
involved with the use of actual cash, for example theft or
geographical distance to the next bank.

Second, data scientists have woken up
to the idea of tapping payment data.
There is only one kind of data that records virtually
every real transaction in this economy: payment data. With recent
progress in data science, the potential to tap these data seems
unlimited.

Finally, blockchain has put the idea of payment processing
upside down, even though the most fruitful application
of blockchain might not even be payments.

---
class:inverse, middle, center
background-image:url("img/creditlyonnaise_vault.jpg")
background-size:cover

# Origins of Payment Technology

.left[.footnote[.tiny[Image by <a href="//commons.wikimedia.org/wiki/User:Rdavout" title="User:Rdavout">Renaud d'Avout</a> - His hown work, <a href="https://creativecommons.org/licenses/by-sa/3.0" title="Creative Commons Attribution-Share Alike 3.0">CC BY-SA 3.0</a>, <a href="https://commons.wikimedia.org/w/index.php?curid=16817905">Link</a>]]]
---
#Cash

.left-column[
![Marcus Aurelius Coin](img/Marcus_Aurelius_Denarius2.jpg)
Denarius coin of Marcus Aurelius.
.small[Credit: [Rasiel](https://en.wikipedia.org/wiki/User:Rasiel) at English Wikipedia.

CC-BY-SA 3.0]
]
.right-column[

Cash is the most immediate way to pay for goods or services.
Across cultures, the type of objects that could play a money-like
role has been quite different, ranging from commodities like
metals or [seashells](https://en.wikipedia.org/wiki/Shell_money)
to [fiat money](https://en.wikipedia.org/wiki/Fiat_money).

Common properties of physical objects that have played the role of
money are:
  * limited supply
  * durable, not easily damaged
  * difficult to forge
  * easy to transport

A particular problem that was common among all precious metal coins
was that metal bits were often scraped off the coin before using it
to pay. Payees often consulted experts for cash, bankers and goldsmiths, before accepting a coin.

]

---
# Settling distant payments

Cash is fine for settling payments right in the moment.
It was and remains terrible for settling payments at a geographically
distant place: the risks of loss grew with distance,
the probability of acceptance decline with it.

You can find amazing castles and fortresses along all the big historical trade routes in Europe (e.g. Rhine valley, Brenner route through Alto Adige). Imagine
you had travelled along such route carrying cash to pay someone. How much of your cash would
have been taken from you on the road by the castles' inhabitants?

We can suspect that the mere problems of cash management and
payment over distance led to the emergence of "warehouse-like"
intermediaries that were predecessors of modern banks:
  * accepting deposits of coins for storage
  * issuing deposit receipts that were payable in "good money", i.e. intact coins
  * netting of claims versus other banks, thus enabling
    payments to payees in other cities without the transport of
    physical cash.

---
# Bank deposits as money

The words "I pay you" and "I send the money to your bank account" seem
synonyms for most people. They are clearly not the same. If I pay you,
you receive __currency__. If I wire money to your account, you receive
a __private liability__ of a bank: a deposit.

We can see that bank deposits have acquired equivalent function of
money, and that deposits are transferred easily between many banks and
depositors.

For this to work, banks
need reliable channels of __settling__ claims against each
other in definitive curency. We will now look at what these
channels are today.

---
class: inverse, center, middle
background-size:cover
background-image:url("img/nyfed-vault.jpg")
# Payments Infrastructure:

## Large Value Payment Systems

---

# Large value payment systems

Most central banks as well as several private clearinghouses
operate dedicated large value payment systems
(LVPS) through which banks make and settle payments to each other.
Settlement refers to the actual payment of an obligation in
central bank money.

Large value payment systems settle extremely
large volumes of transactions. For example, the European payment system [TARGET2](https://www.ecb.europa.eu/paym/target/target2/html/index.en.html) settles every week values in excess of _annual_ Eurozone GDP.
A similar system in the United States is [Fedwire](https://www.frbservices.org/financial-services/wires/index.html).

Depending on their mode of operation, one can distinguish between
two different "flavors" of LVPS systems, even though in practice
most systems today combine hybrid elements from both types:

* __deferred net settlement__ systems settle payments
    by accumulating payments for a certain period of time and
    subsequently netting all positions.
  * __real time gross settlement__ (RTGS) systems instantly transfer
    the gross amount of funds for every transaction to the payee.

Today most central bank operated payment systems, e.g. [Fedwire](https://www.frbservices.org/financial-services/wires/index.html) (USA), [TARGET2](https://www.ecb.europa.eu/paym/target/target2/html/index.en.html) (Eurozone), and [CHAPS](https://www.bankofengland.co.uk/-/media/boe/files/payments/rtgs-and-chaps-service-description-december-2018) (United Kingdom), are RTGS systems.

---
# Deferred net settlement systems

Deferred net settlement has unique advantages in terms of liquidity
sparing operations: consider the following graph of transactions that
need to be settled between banks A, B, C and D:

.pull-left[
![Payment graph](img/payments-graph1.svg)
]
.pull-right[

As we can see, the payments are larger in gross terms than in net,
i.e. after offsetting payments in opposite direction have been
taken into consideration.

As deferred net settlement systems settle only at several points
during the day, it's quite likely that a lot of offsetting payments
accumulate and can be netted out by the time settlement takes place.
In this way, deferred net settlement systems have much lower liquidity
requirements than RTGS systems (to settle the same claims).
]
???

```graphviz
digraph L0 {
	size = "8,8";
	ordering=out;
	node [shape = box];

nA [label="Bank A"];
	nB [label="Bank B"];
	nC [label="Bank C"];
	nD [label="Bank D"];

	nA ->  {nC} [label="100"]
	nA ->  {nB} [label="85"]
	nB ->  {nA} [label="140"]
 	nB ->nD  [label = "10"]
	nC ->  {nD} [label="43"]
	nC ->  {nB} [label="55"]

	nD ->  {nA} [label="58"]
}

```

---

# Deferred net settlement systems

Technically, most deferred net settlement systems perform the
multilateral netting by introducing a central counterparty against
which all the claims are held. Taking the previous example of
the payment graph to a deferred net settlement system would result
in the following net obligation structure:

.pull-left[
![Deferred net](img/defnet1.svg)
]
.pull-right[
As you can see, the net payments are little compared to the gross amounts.

The downside of deferred net settlement systems is that they create
credit risk: what if in the evening at netting,
it is found that bank B doesn't have 10 (and disappears in a
bankruptcy cloud)? Who gets what? Which payments are considered
settled?

]

???

Code to generate graph:
```graphviz
digraph L0 {
	size = "8,8";
	ordering=out;
	node [shape = box];

nA [label="Bank A"];
	nB [label="Bank B"];
	nC [label="Bank C"];
	nD [label="Bank D"];

	ccp [label="System"
	shape=circle style = "filled" fillcolor="green"]

ccp-> nA [label="13"]

    nB->ccp [label="10"]

ccp->nC [label="2"]

    nD->ccp [label= "5"]

}

```

---
# RTGS Systems

RTGS systems settle in real time, so they don't create any credit risk.
This enables RTGS to deliver instant _payment finality_: once
inserted, payments are irrevocably executed, and the payee can
can immediately use the proceeds for any purpose.

However, RTGS systems have much higher liquidity needs than
deferred net settlement systems. Even worse, they
can suffer from _liquidity starvation_ and freeze up.
This would happen if several of the participants don't have
sufficient liquidity for gross payments, and offsetting payments
are delayed for some reason.

This has been a major concern in the crisis.

To see the problem, in our previous
example check what would happen if bank A's payments got delayed for
some reason, and no other bank had more than 50 units of funds to
start with (which is already more than four times the net obligation)!

---
# Resources on payment systems
.pull-left[[
![ECB Bluebook](img/kokkola_bluebook.png)](https://www.ecb.europa.eu/pub/pdf/other/paymentsystem201009en.pdf)

]
.pull-right[If you ever find yourself in need of understanding more about the
payment system, an excellent resource is the
[ECB Bluebook](https://www.ecb.europa.eu/pub/pdf/other/paymentsystem201009en.pdf) on the payment system.
It's somewhat dated but still explains the fundamentals
extremely well (and the payments world hasn't changed that much since it was
written).

With over 250 pages, it's not a quick read though.]

---
# Innovation front 1: Instant payments

One problem of traditional LVPS systems is that payments are only
accepted during certain hours of the day, making 24x7 instant payments
practically impossible. This stands in sharp contrast with growing
customer demand for instant payments.

A very recent development are dedicated extensions of existing
payment systems which allow 24x7 real time settlement of payments.
In Europe,
[RT1](https://www.ebaclearing.eu/services/instant-payments/introduction/)  by EBA Clearing (since Nov 2017),
and [TIPS](https://www.ecb.europa.eu/paym/target/tips/html/index.en.html) which runs since Nov 2018 as an extension of TARGET2
are two new exciting possibilities for banks to settle payments in
real time around the clock.

Despite the possibilities offered by these new infrastructures, very few banks are currently offering instant payment services.
It is not trivial to integrate 24x7 payment operations
with existing risk and IT frameworks, especially given that
many of them are built around
the assumption of fixed daily cutoff times.

---
#Innovation front 2: Cross-border payments

Cross border retail payments are just a nightmare, as the different currencies,
jurisdictions and time zones add many more complications.
Traditionally, cross-border retail payments are made through
_corresponding banks_
in the destination country.

This means that, for example, an Italian bank deposits a large amount
of foreign currency at a foreign (e.g. U.S.) institution under an agreement that
allows it to use this account for the foreign currency leg of
foreign exchange transactions. The details are quite messy,
see e.g. this
excellent
[report by the BIS](https://www.bis.org/cpmi/publ/d173.pdf), which
also notes that
>Users’ experiences often fail to meet their expectations, particularly for certain use cases.

Transparency, speed and costs are the key dimensions of shortfall.

---
#Innovation front 2: Cross-border payments

It would be unfair to blame the poor customer experience
with cross-border payments just on banks Much of
the problem lies in the complexity
of the numerous risk mitigation measures that are in place
due to the international nature of the transaction, and
regulation makes it hard for banks to innovate in
this respect.

Example: [Herstatt risk](https://en.wikipedia.org/wiki/Settlement_risk)
is mitigated by using [CLS Bank's](https://www.cls-group.com/products/settlement/clssettlement/how-it-works/)
payment-versus-payment mechanism, but this may add further delay or cost.

In summary, there clearly is a lot of scope for simplification of
cross border payment
procedures, which has high relevance in an
increasingly globalized world. Banks rarely find themselves
in a good position to drive forward such innovation.

We will certainly see a lot
of innovation in this area over the coming years as FinTech firms like
[Revolut](https://www.revolut.com) and [TransferWise](https://www.transferwise.com)
are heavily investing in this field.

---
#Innovation front 3: Blockchain for RTGS?

RTGS systems are notoriously expensive to operate:
redundancy and extensive failover scenarios, dedicated hardware and
software, and expensive required specialist skills all drive up their cost.

Catastrophic outages must be avoided to the maximum extent possible (the Bank of
England can [tell a story](https://www.bankofengland.co.uk/-/media/boe/files/report/2015/independent-review-of-rtgs-outage-on-20-october-2014-boes-response) about this. They were unable to settle GBP 290 billion of payments
some day in 2014 when their system [went down](https://www.theguardian.com/business/2015/mar/25/bank-of-england-payment-system-collapsed-due-to-design-fault).)

Blockchain by design allows for a more decentralized handling of
transactions than traditional settlement systems and thus potentially
have better failover behavior, plus they require cheaper hardware
and less complex software.
For this reason,
financial market infrastructure operators are increasingly looking
into the use of (permissioned) blockchains to eventually replace
existing RTGS settlement systems.

---
class: inverse, middle, center
background-image:url("img/money-256281_1920.jpg")
background-size: cover

# Retail Payment Instruments:
## Everywhere you want to be?
---

# Credit Cards

Credit cards allow you to make purchases on credit by merely
communicating your credit card number to a merchant. This can
even be done by phone. The merchant the bills your credit card
company, which has provided you with a credit line from which it
pays for your purchases.

Whilst very common in the U.S., credit cards have had a very
low market share in Europe and Asia for very long, but growing
internet adoption has tilted the numbers dramatically in their favor.

One aspect that makes credit cards particularly useful as payment
instruments in online transactions is that every credit card
transaction is protected by a dispute process: if you're not receiving
what you paid for, or if you were charged without authorization,
you can raise a dispute with your credit card company. The company
will settle the dispute after hearing the merchant (and seeing evidence,
if needed). This dispute element is a core element in almost all payment instruments that ever became relevant for online payments, e.g. PayPal.

---
# How credit card transactions work

Credit card transactions are relatively complicated. First,
the credit card transaction is __authorized__ by submitting the
transaction request to the (merchant's) _acquiring bank_, which forwards the
request to the card issuer's bank. The response arrives in
real time. Roughly speaking, there is a distinction between
 * _card present transactions_, where the card was physically presented
 * _card not present transactions_, e.g. internet orders, subscription billing etc.

Merchants are charged higher fees for the latter because the risks of fraud are higher. Even off-line authorization modes exist for special
purposes (e.g. airplane on-board shopping) which just collect
transactions and seek authorization retroactively.

Successful authorization yields an authorization code which
the merchant keeps as proof of payment.

At end of day, the merchant submits the batch of authorized transactions
to his/her bank which settles the claims with the card issuer via the
credit card network. Unsubmitted authorizations remain valid for a certain
number of days (_"hold"_) before the funds are returned to the cardholder.

---
# Debit cards

Debit cards are relatively simple (when compared to credit cards).
The merchant uses a POS device to read your debit card, which
contains your banking coordinates. Your card in combination with
your secret key generates an electronic signal for your bank
indicating that you are authorizing a transfer of funds.
Your bank checks the availability of funds in real time,
confirms the transaction and withholds the funds. The
transaction is settled via one of the LVPS systems.

Debit cards provide substantially less protection from fraud / non-delivery, even though more recent incarnations carry credit
card company logos and are endowed with at least some basic protection
in order to make them more useful for online transactions.

---

class:inverse, middle, center
background-image:url("img/giraffe-2233366_1920.jpg")
background-size:cover

# Looking farther:
## Emerging market retail payment instruments

---

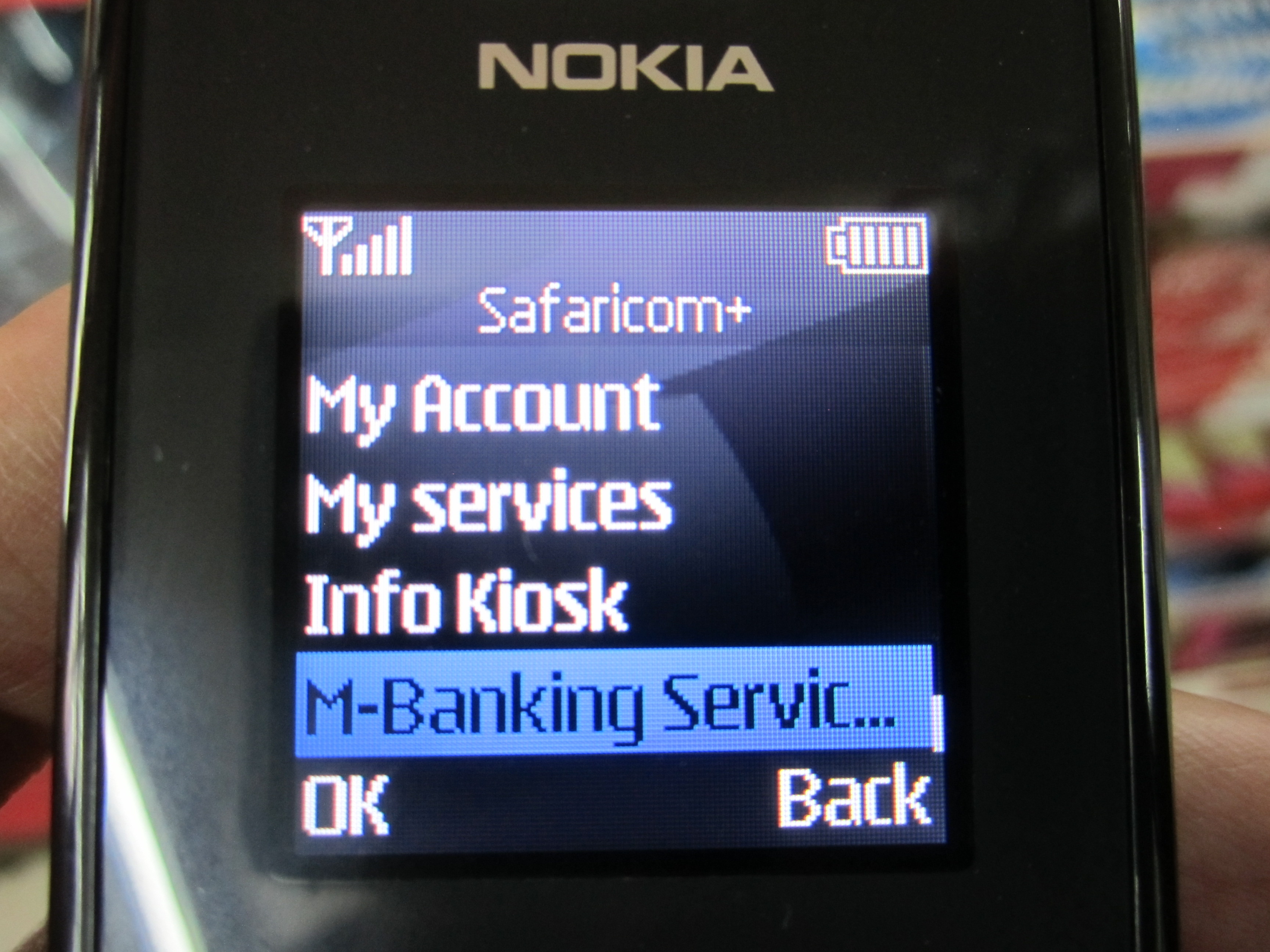

# Africa: mobile payments by SMS

.left-column[

![m-pesa](img/mpesa.jpg)
.tiny[Image: [Ivan Small](ihttps://commons.wikimedia.org/wiki/File:M-Pesa_service_screen_on_a_feature_phone.jpg )
]

]

.right-column[
Since 2007, mobile payments and banking via SMS has been booming in
Afrika. Payment providers like [m-pesa](https://www.safaricom.co.ke/personal/m-pesa) have managed to offer financial services to many unbanked customers who were
out of reach for traditional banks.

There is controversy about high transaction fees that
extract large benefit from mostly poor users.

]

---
# China: mobile payments by QR code

In the PRC (and now most of Asia), payment by apps that simply scan merchants' QR codes has
become extremely popular. The payment app provides
a virtual wallet which can be funded by bank funds or credit cards.
Execution of payments happens at the provider. The
most relevant providers are:
 * [AliPay](https://intl.alipay.com), and
 * [WeChat Pay](https://pay.weixin.qq.com/index.php/public/wechatpay).

Unlike credit or debit cards, QR payments have little risk of
theft of the payer's identity because only the merchant's
identity is encoded in the QR code and is transmitted.
Reports of criminals replacing
a merchant's QR code with a code of their own are now becoming more
frequent, though.

WeChat is a perfect example how how digital payment services can quickly
reach dominant market share if they are unrolled
on a pre-existing network with huge user base (the main app has functionality comparable to WhatsApp). I am sure Mark Zuckerberg has
been scratching his head about this a lot.

---
class:inverse,middle,center

#Blockchain: Foundations

---
#The peer-to-peer origins of Bitcoin

From a technological point of view, blockchains like Bitcoin
draw heavily on techniques that already have a long history as
cornerstones of
peer-to-peer network software.

We'll talk about P2P networks today and learn more about
the technologies under the hood such that we'll have an easier
time next week when it comes to understanding Bitcoin.

---
#Internet, under the hood

To this day, the most important internet application remains
HTTP: your browser connecting to a web page.

Under the hood, when you load a page (e.g. http://www.google.com), what happens roughly the following:

 * Your computer queries DNS for the IP address of the page that y
   you're loading: `www.google.com->216.58.198.46`
 * Your computer opens a TCP connection to port 80 (HTTP) or 443 (HTTPS)
   of the computer at the given IP address, which in the case of HTTP(s)
   typically is a server.
 * The server sends data: the requested HTML page is served.
 * Your computer keeps acknowledging the packages received, and closes
   the connection.

If you want to see this live in action, open your web browser's
developer mode, and watch the network tab while a page is loading.

---
# The data monopoly of "servers"

In the early days of internet (and more again today), internet content was almost exclusively provided by dedicated central computers, typically
denoted as "servers":
 * company webpages
 * hacker pages
 * hobbyist pages

In other words, if you wanted to distribute any content, you needed
to find a way for it to make its way on a server (e.g. rent webspace,
or run your own server).

The fact that many server-hosted pages (e.g. facebook) now accept the
upload of huge amounts of user-generated data doesn't change a bit
about this: only the people running servers have the ability
to control the distribution of data to recepients.

---

# Every computer can be a server!

Technologically there is no reason that would dictate
this strong asymmetry between internet (client) users and
servers:

In fact, every computer can run in server mode and respond to
internet requests! So can yours:

```python
import socket
server_address = ('localhost', 10000)
sock.bind(server_address)
sock = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
sock.listen(1)
while True:
    # Wait for a connection
    connection, client_address = sock.accept()
    # then do whatever you want to do with the connection
    #....
    connection.close()
```

With code as simple as this, one can serve incoming requests from other machines (in this example, the server listens on port 10000).

---

#Peer to peer networking

Peer-to-peer networking is a distributed alternative to the predominant
heavily centralized content provision model.

For a peer-to-peer network, it suffices to run peer-to-peer software which connects to computers of other users
that are running the same software.

Technologically, this happens in three steps:
 * **Bootstrap.** The machine attempts to locate "peers", i.e. other machines
    running the same service, e.g. by querying a known IP address for a
    list of some known network participants or by attempting at random
    to "talk" to any address that it can reach. Once a first peer has successfully been reached, the software asks it for a list of further
 peers. The software connects to a subset of those other peers as well.

 * **Directory services and request forwarding:** the peer to peer software
 receives and forwards requests that it receives from other peers.
 For example, a file sharing software may listen to incoming searches
 for files, and if it doesn't find those files locally, forward
 the query to other peers.

---
#Peer-to-peer networking (cont.)

* **Direct connection:** Having located users who would benefit from
  a direct connection between each other (e.g. file owner vs. user
  searching for the file) via the P2P directory, the software
  creates a direct channel of communication between those users
  for the transfer of files, telephony voice data or whatever the
  software's key service may be.

Of course, one prominent application of peer-to-peer software has
been the illegal distribution of copyrighted information
that nobody would want to load on a web server for the fear
of legal consequences. This has earned P2P a "dark" reputation
even though the technology itself is perfectly clean and legal.
The download of copyrighted material is not, of course.

---
# Verifying data integrity

In peer-to-peer systems, _anything goes_: users have no control
over which other computer they connect with, and there is no
reason to believe that the other side is trustworthy in any sense.

Assume one has received data, how can one verify the integrity
of these data?

A very costly way would be to download the same data from several
other sources as well and compare what was received.

A much better way is to use a __cryptographic hash function__:
take a function which can be fed arbitrary data as input,
and spits out some "fingerprint" of the data:
  - the same data must give always the same hash, i.e.
    the function must be fully _deterministic_
  - the set of potential input data should be mapped as uniformly
    as possible to the set of possible hashes
  - the hashes should be easy to compute and much shorter than
    the data.

---
# Cryptographic hash functions

**Properties of a good cryptographic hash function:**

- _collision resistance:_ it must be computationally unfeasible to
   find a pair of data (A, B) such that
   `\(h(A) = h(B)\)`.

 - _preimage resistance:_ it must be computationally unfeasible,
   given hash `\(a\)`, to find a message such that
   `\(h(m) = a\)`.
 - _second preimage resistance:_ it must be computationally
   unfeasible to, given a message `\(m_1\)`, find another message `\(m_2\)`
   such that
   `\(h(m_1) = h(m_2)\)`.

**Cryptographic hash functions**:

 How do we know that some complicated function is a good cryptographic
 hash function? Answer: we never know! Many hashing algorithms that
 were believed to be good have been broken, e.g. MD4, MD5.

 At the moment, SHA256 still seems good for all we know.

---
# Cryptographic hash functions: examples

Cryptographic hash functions are better than the police when it
comes to finding small (or big) integrity problems with your
data:

.small[
```python
import hashlib

# prints an MD5 hash
def print_with_hash(data):
  print (data, " | MD5 hash: ", hashlib.md5(data).hexdigest())

print_with_hash(b'The world is big.')
print_with_hash(b'The word is big. ')
```]
Output:
.small[
```text
b'The world is big.'  | MD5 hash:  fe3c1c076552b3e6c61a2d3d4b288340
b'The word is big. '  | MD5 hash:  f78c604d621c6b11436c95c5152b2a3d
```
]

.footnote[*We use the MD5 hash function
in all our examples just because
it generates nice short hashes. But it's known to be broken,
so don't use it in production!]
---
# Hash lists

In peer-to-peer networks, it's quite typical that some blocks of
the same file are provided to you by one peer, other blocks by another.
Hence, it's ideal to know a list of the correct hashes of all the
data blocks upfront:

![Hash tables](img/hashlist.svg)

That's for example how Bittorrent works. A `.torrent` file
contains a list of block hashes, and your torrent software validates
incoming data against these hashes.

Note that the number of hashes will increase linearly with the
number of blocks. The complexity of verifying
that a given block belongs to the file is therefore `\(\mathcal O(n)\)`.

???

```graphviz
digraph G {
    rankdir="BT"
	node [
fontsize = "14"
fontname = "Times-Roman"
fontcolor = "black"
shape = "box"
color = "black"
width = "0.5"
];
edge [
fontsize = "14"
fontname = "Times-Roman"
fontcolor = "black"
color = "black"
];

"h01" [
label = "h(01)"
shape = "ellipse"
kind = "file"
];

"h02" [
label = "h(02)"
shape = "ellipse"
kind = "file"
];

"h03" [
label = "h(03)"
shape = "ellipse"
kind = "file"
];

"h04" [
label = "h(04)"
shape = "ellipse"
kind = "file"
];
"h05" [
label = "h(05)"
shape = "ellipse"
kind = "file"
];
"h06" [
label = "h(06)"
shape = "ellipse"
kind = "file"
];

"01" [
label = "Block\n01"
pname = "?"
kind = "proc"
];
"02" [
label = "Block\n02"
pname = "dotty"
kind = "proc"
];
"03" [
label = "Block\n03"
pname = "dotty"
kind = "proc"
];
"04" [
label = "Block\n04"
pname = "dotty"
kind = "proc"
];
"05" [
label = "Block\n05"
pname = "dotty"
kind = "proc"
];

"06" [
label = "Block\n06"
pname = "dotty"
kind = "proc"
];

01->h01
02->h02
03->h03
04->h04
05->h05
06->h06
}
```
---
# Merkle trees

One can do better than
linear complexity (and in addition enjoy other important improvements):
let's build trees of hashes!

The first to describe hash trees was Ralph Merkle (see the original patent [here](https://worldwide.espacenet.com/textdoc?DB=EPODOC&IDX=US4309569)), so they bear his name. The idea is simple: For any pair of hashes,
join their hashes together and hash over these hash data again. Do so until you reach one single top node, which is called the Merkle root (see
the illustration on the next page).

Of course, this works only if there's an even number of nodes at
every level below the top one. If there isn't, the convention is
to simply duplicate the last node, which occurs in our example
to the hash _h(H05, H06)_.

If the tree is binary (i.e., every node has two leafs), then a tree
of height `\(h\)` has `\(2^h\)` final nodes. Reversing this logic, the
tree that belongs to a file of `\(n\)` blocks will have a height
of `\(\mathcal O(\log(n))\)`. This will prove a key advantage of
Merkle trees when it comes to validation, more about this later.

---
#Merkle trees
![Merkle tree](img/merkletree.svg)
???

"root"
[
label = "h(H1234,H5656)\nMerkle Root"
shape = "ellipse"
];

"h14" [
label = "h(H12,H34)"
shape = "ellipse"
kind = "file"

];

"h58" [
label = "h(H56,H56)"
shape = "ellipse"
kind = "file"
];

"h12" [
label = "h(H01, H02)"
shape = "ellipse"
kind = "file"
];

"h34" [
label = "h(H03,H04)"
shape = "ellipse"
kind = "file"
];

"h56" [
label = "h(H05, H06)"
shape = "ellipse"
kind = "file"
];

"h01" [
label = "h(01)"
shape = "ellipse"
kind = "file"
];

"h02" [
label = "h(02)"
shape = "ellipse"
kind = "file"
];

"h03" [
label = "h(03)"
shape = "ellipse"
kind = "file"
];

"h04" [
label = "h(04)"
shape = "ellipse"
kind = "file"
];
"h05" [
label = "h(05)"
shape = "ellipse"
kind = "file"
];
"h06" [
label = "h(06)"
shape = "ellipse"
kind = "file"
];

"06" [
label = "Block\n06"
pname = "dotty"
kind = "proc"
];

01->h01
02->h02
03->h03
04->h04
05->h05
06->h06
h01->h12
h02->h12
h03->h34
h04->h34
h05->h56
h06->h56
h12->h14
h34->h14
h56->h58
h56->h58
h14->root
h58->root
}
```
---
# Merkle trees and Merkle proof

Merkle trees have some really nice properties:
 * Change even a bit in the file, and the Merkle root will change!
   In that sense it works just as good as a regular hash over the
   entire file.
 * Given the Merkle root of a file, it is very inexpensive to verify
   (_"Merkle proof"_) whether a given piece of data is a valid data
   block in the file:
      - In the example on the previous page, assume that
        you know the file's Merkle root from a trusted
        source. You've just received block 03 but don't know any
        of the other blocks. How much data do you need, and does it have
        to come from a trusted source, to have __proof__ that
        the block which you received is genuine and an element of the file?
     - You only need three more hashes, and _don't_ need to
       trust the one who is providing them to you (fakes won't
       yield the right root)!
     - I illustrate this on the next page. The orange hashes are
       those you need. You can then calculate
       the green hashes and compare the resulting root against
       the true one.
 * This is a more general principle: knowing the Merkle root,
   it takes just `\(\mathcal O(\log(n))\)` steps (proportional to the
   height of the tree rather than to the size of the file) to
   verify that a specific block indeed belongs to any file. This is
   way superior to `\(\mathcal O(n)\)`!

---
# Merkle proof

![Merkle proof](img/merkleproof.svg)

???

"root"
[
label = "h(H1234,H5656)\nMerkle Root"
shape = "ellipse"
style = "filled"
fillcolor = "green"
kind = "file"

];

"h14" [
label = "h(H12,H34)"
shape = "ellipse"
style = "filled"
fillcolor = "green"
kind = "file"

];

"h58" [
label = "h(H56,H56)"
shape = "ellipse"
style = "filled"
fillcolor = "orange"
kind = "file"
];

"h12" [
label = "h(H01, H02)"
shape = "ellipse"
style = "filled"
fillcolor = "orange"
kind = "file"
];

"h12" [
label = "h(H01, H02)"
shape = "ellipse"
kind = "file"
];

"h34" [
label = "h(H03,H04)"
shape = "ellipse"
style = "filled"
fillcolor = "green"
kind = "file"
];

"h56" [
label = "h(H05, H06)"
shape = "ellipse"
kind = "file"
];

"h01" [
label = "h(01)"
shape = "ellipse"
kind = "file"
];

"h02" [
label = "h(02)"
shape = "ellipse"
kind = "file"
];

"h03" [
label = "h(03)"
shape = "ellipse"
style = "filled"
fillcolor = "green"
kind = "file"
];

"h04" [
label = "h(04)"
shape = "ellipse"
style = "filled"
fillcolor = "orange"
kind = "file"
];
"h05" [
label = "h(05)"
shape = "ellipse"
kind = "file"
];
"h06" [
label = "h(06)"
shape = "ellipse"
kind = "file"
];

"01" [
label = "Block\n01"
pname = "?"
kind = "proc"
];
"02" [
label = "Block\n02"
pname = "dotty"
kind = "proc"
];
"03" [
label = "Block\n03"
pname = "dotty"
style = "filled"
fillcolor = "red"
kind = "proc"
];
"04" [
label = "Block\n04"
pname = "dotty"
kind = "proc"
];
"05" [
label = "Block\n05"
pname = "dotty"
kind = "proc"
];

"06" [
label = "Block\n06"
pname = "dotty"
kind = "proc"
];

01->h01
02->h02
03->h03
04->h04
05->h05
06->h06
h01->h12
h02->h12
h03->h34
h04->h34
h05->h56
h06->h56
h12->h14
h34->h14
h56->h58
h56->h58
h14->root
h58->root

}
```

---
# Merkle roots in the Blockchains

Next week we'll read the original Satoshi Nakamoto Bitcoin white paper.
Among other things, we'll learn how Merkle trees are used
exactly in Bitcoin. They're of crucial importance because they enable
the efficient verification
of a single payment record in a sea of data without having
to download all the other payments.

To prove that a payment has actually happened, it suffices to have
the transaction in question and obtain from the network
the (few) hashes for completing the Merkle
proof all the way up to the trusted Merkle root.

In next week's lab we also calculate a simple Merkle tree.

Stay tuned!

---

class: center, middle

# Thanks!

More material on [https://silviopetriconi.github.io](https://silviopetriconi.github.io).

For questions, comments and suggestions regarding these slides please contact the author, [`silvio.petriconi@unibocconi.it`](mailto:silvio.petriconi@unibocconi.it).

[![CC-BY-NC-SA](https://i.creativecommons.org/l/by-nc-sa/4.0/88x31.png)](http://creativecommons.org/licenses/by-nc-sa/4.0/)

This work is licensed under a
[Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License](http://creativecommons.org/licenses/by-nc-sa/4.0/).
